Features

1) User friend Interface 2) Data management

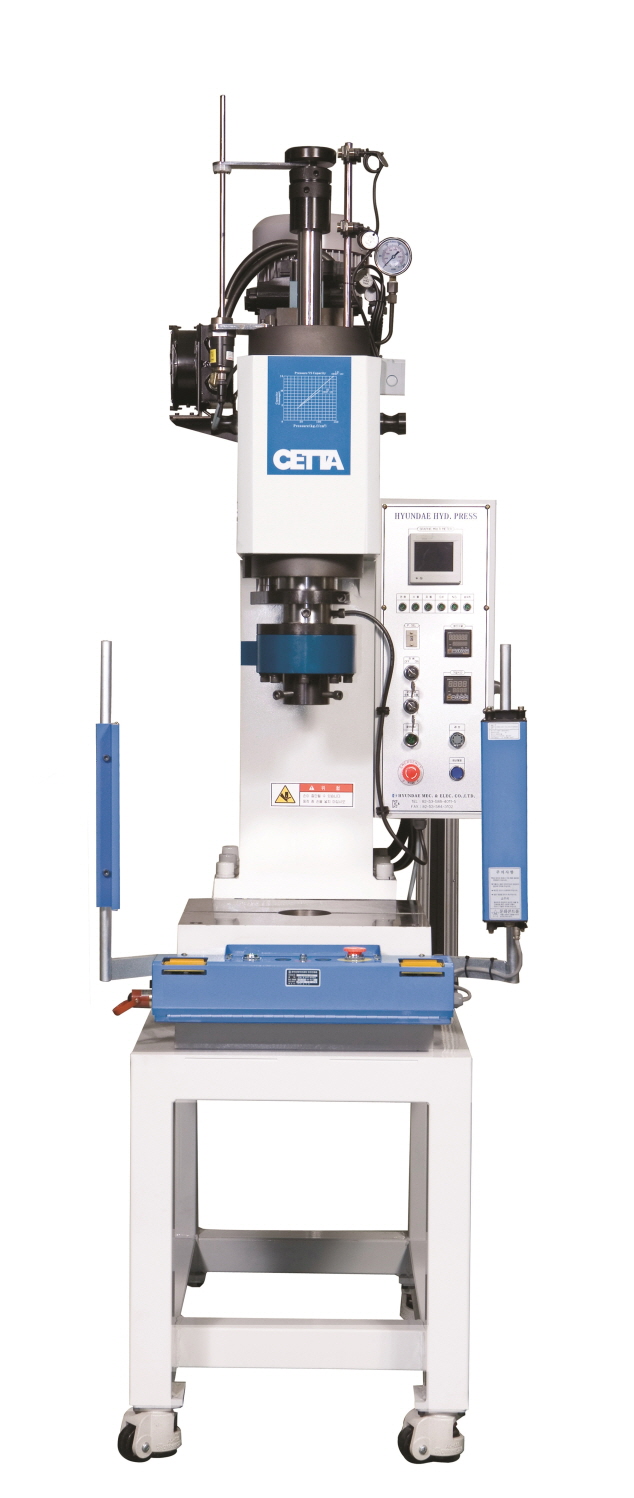

- Little press doctor : Graphic Multi Meter                                               - Work Count(Total, Good product, No Good product)
- Adjustable User Interface (graph color, background, etc...)                 - Data classification and storage (per day/month, year/worker)
- Loading pre-setted configuration value for easy configuration             - Data store(SD memory, Hard disk)

3) Measuring sensor                                                                               4) Display working data
- Force : Loadcell(upon customer request)                                             - Pressing force(Maximum, Minimum, Average)
- Displacement : LVDT type(upon customer request)                        - Working range(Display Ram stroke automatically)

5) Judgment
- Good product(OK), No good product(NG)
- Master graph, block

Data Display window(ex. insertion process)

1. Ready state
setting configuration
2. Ready state
display initial contact force(peak value)
ex) initial contact force : 100kg·f
3. Insertion start state
display insertion starting force
ex) starting force : 300kg·f
4. Prior state of Finish
display insertion force at theend of process
ex) Insertion force : 800kg·f
5. Insertion Finish state
display insertion finish force
ex) Insertion force : 1,000kg·f
6. Judgment state
judge Ok or NG refer toreference specification.
